Checkweigher

Packing case check weighing machine CWS-500-2

Model: CWS-500-2

Sorting range: 10KGS-30KGS

Sorting accuracy: ±0.01% g

Minimum scale: 1 g

Sorting speed: up to 30-100 meter/ minute

Detection product limit: length is 600 mm, wide and 450 mm, the height is 450 mm

Mode of operation: touch operation

Operation interface: 7 inch touch screen

  • Product Detail

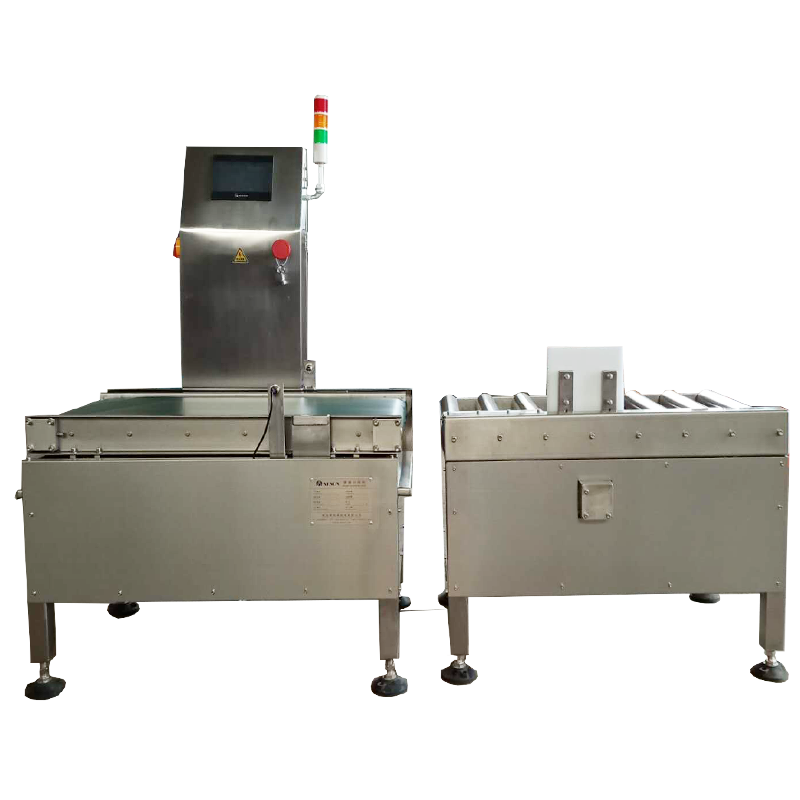

Box check weighing machine

It is a machine that detects the weight of the target and is used in a wide range of applications.
For example, as shown in Figure :

 1, To check whether the weight of the can after filling is within the range;
 2, Is the weight of the carton after packaging;
 3. Whether the weight of the package after filling is acceptable.

Model: CWS-500-2

Sorting range: 10KGS-30KGS

Sorting accuracy: Within ±0.01%g

Minimum scale: 1 g

Sorting speed: up to 30-100 meter/ minute

Belt width: 500mm

Weighing platform length:970mm

Mode of operation: touch operation

Operation interface: 7 inch touch screen or 10 inch

Suitable for:package box, etc.
