آلة الميزان المركبة لمطابقة الهدف

نموذج: AK-W-24

Discharge station: 24 head

Output speed: 25-40 set/min

Cumulative weight: Touch screen setting

حد الكشف عن المنتج: طول 400 مم, عرض 150 مم, ارتفاع 3-50 مم

طريقة التشغيل: عملية اللمس

واجهة التشغيل: 10 بوصة(or 15 بوصة) شاشة اللمس

  • تفاصيل المنتج

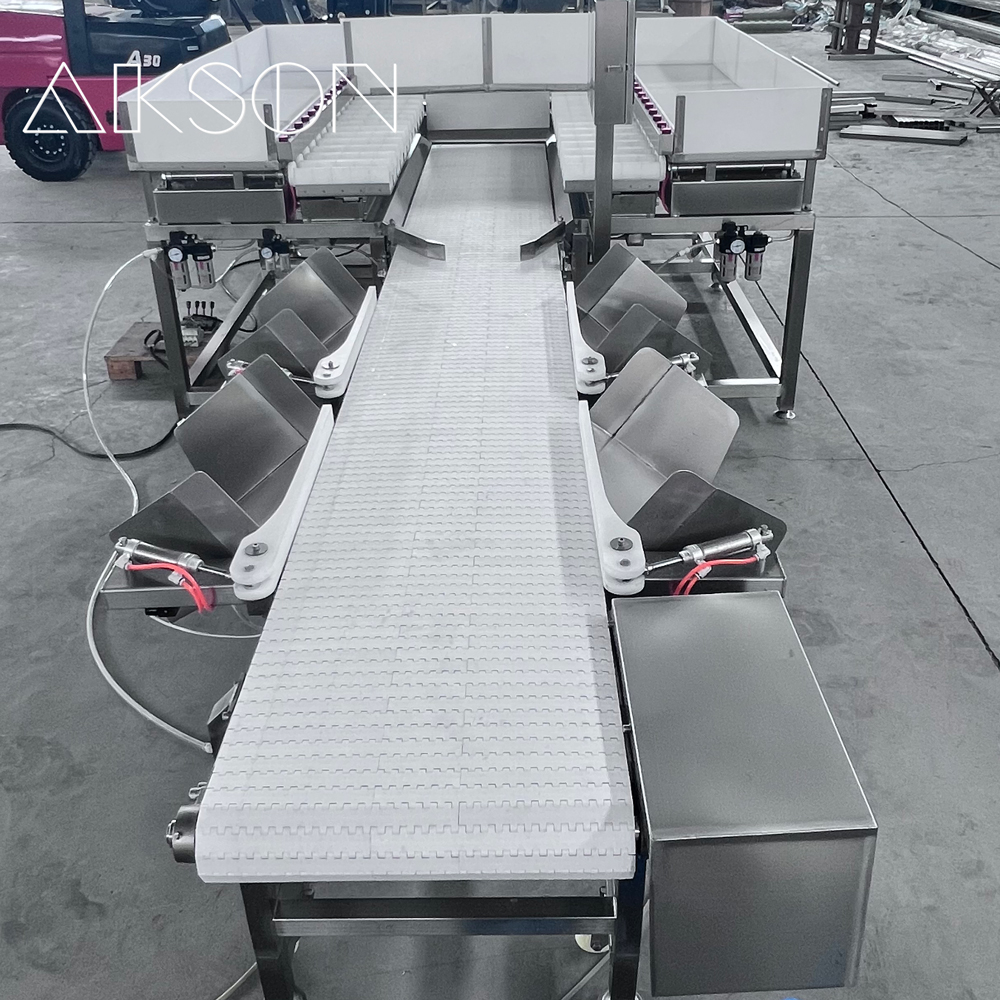

Combination weigher machine for target matching Features:

This machine are commonly used in chicken, fish fillets, and food processing plants to increase production efficiency and improve packaging accuracy.

This machine can be accurately weighed according to the preset quantity. And weight and automatically transported to the packaging station. Which can not only ensure that the quantity and weight of packaged products meet the requirements, but also save materials and control errors.

  1. The main body of the machine is made of SUS304, which has strong environmental applicability, is durable and does not rust;
  2. The counterweight is highly combinable, and suitable for automatic combination weighing of various products;
  3. Strong expandability for machine, can be connected with automatic feeding machine and packaging machine. And avoid manual contact, and reduce scratches on the surface of materials;
  4. The design structure of the conveyor belt is easy to disassemble, which is convenient for daily cleaning and maintenance;
  5. Visual signal lights, the feeding direction and area display are more intuitive. And the current status of the corresponding pallet can be effectively identified;
  6. The target production quantity can be set. And the machine will stop automatically after the weighing quantity reaches the preset value;
  7. Automatic zero-clearing function ensures high precision.

Note: More industry applications, customized solutions, consulting customer service

اسم Counterweight weigher machine for target matching
نموذج AK-W-14 AK-W-16 AK-W-18 AK-W-24
Cumulative weight Touch screen setting
نطاق الوزن 5g-5000g
Resolution 0.1ز
Discharge station 14/16/18/24
Output speed 25-40 set/min
Weighing method continuous weighing
طريقة القضاء Continuous ejection by motor Pneumatic push out
Equipment material SUS304
قوة AC380V/50HZ AC220V/50HZ
